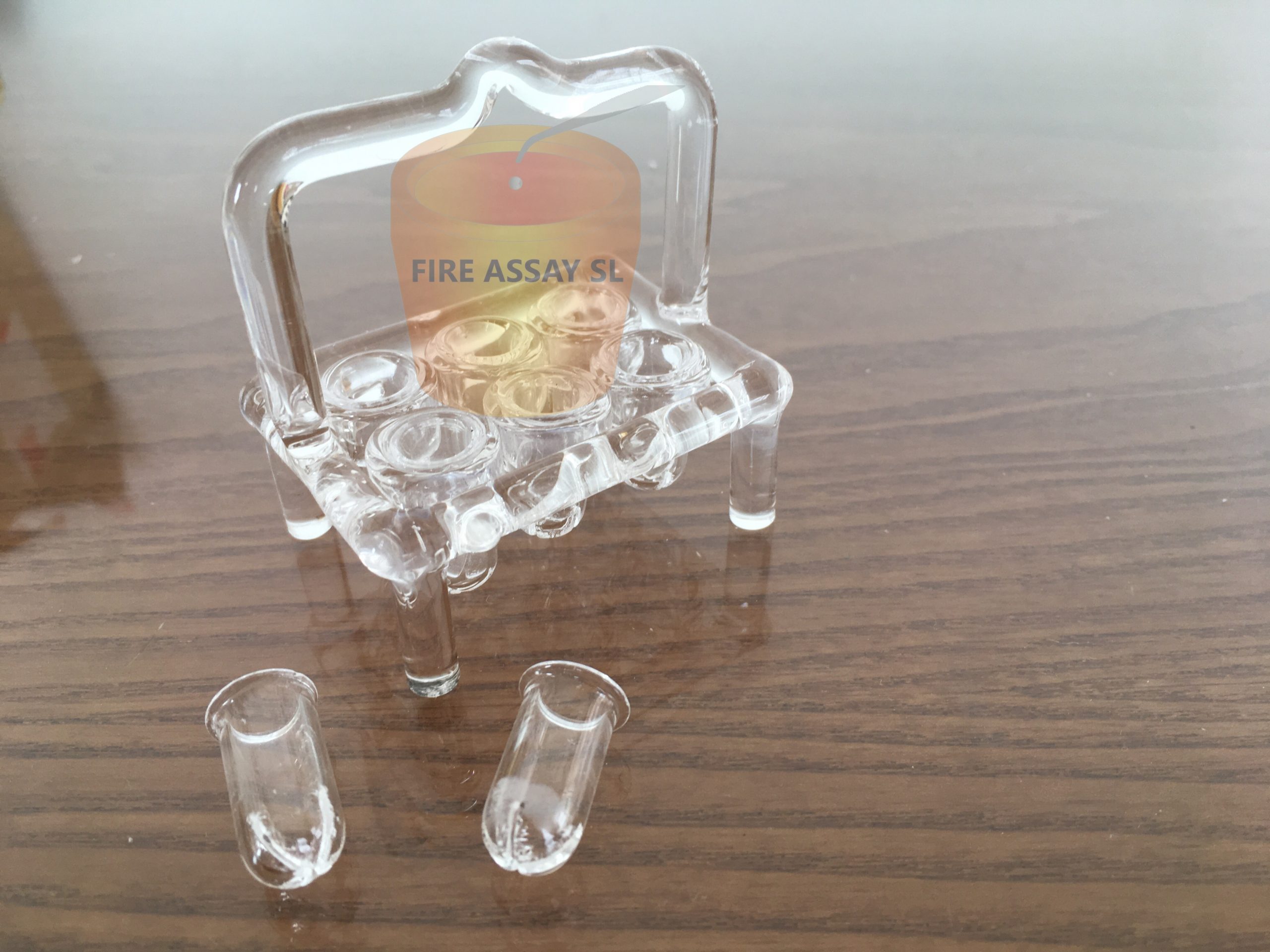

Quartz Parting & annealing baskets for 6 samples – QBR-6

Product description

Quartz parting & annealing baskets for 6 samples, that allow to carry out the successive parting and gold annealing operations in the same container, and subsitute, both parting flasks, and gold annealing crucibles.

These quartz parting & annealing baskets for 6 samples are capable of withstanding:

  • Attack of concentrated nitric acid
  • High temperature necessary for annealing (up to 1000ºC)
  • Thermal shock due to very low coefficient of thermal expansion.

They are therefore suitable for simultaneously processing the two nitric acid attacks (the first with nitric acid 33%, the second with nitric acid 49%) and then go directly in the gold annealing furnace (after rincing with water).

The quartz thimbles are provided with thin slits to evacuate the nitric acid / distilled water and possess a flange at the top to fit the holes of the basket.

It is possible to supply them as spares in case of breakage. There are two types of quarz thimbles / crucibles and they suit most cornet sizes.

Quartz thimble for parting and annealing

Quartz thimble for parting and annealing

The following parting & annealing baskets configurations are available:

Basket
Reference
Dimensions (L x W x H)
(mm)
Capacity
(samples)
QBR-642x57x706 (2 x 3)Quartz parting & annealing bsket for 6 samples
QBR-1257x72x7012 (3 x 4)
Quartz Parting and annealing basket for 12 samples
QBR-2587x87x7025 (5x5)Quartz Parting and annealing basket for 25 samples
QBR-36102x102x7036 (6x6)Quartz Parting and annealing basket for 36 samples
QBR-49117x117x7049 (7x7)Quartz parting and annealing baskets with 49 thimbles
Quartz partind and gold annealing Baskets
